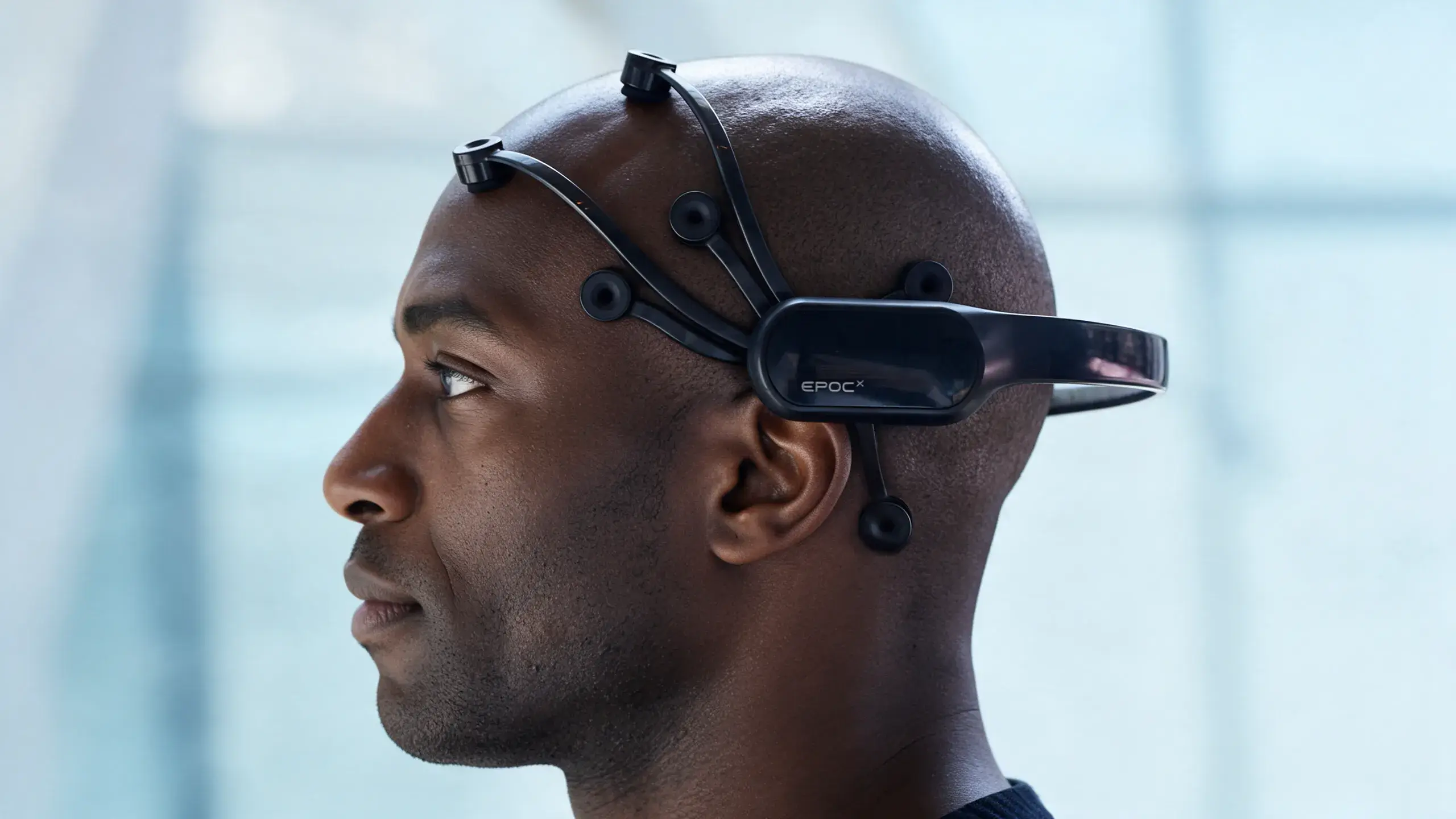

The most credible and cost-effective mobile EEG Brainwear® device in the market.

EPOC + Quick Start Guide Try the New EPOC X

EPOC X Key Features

The EPOC X EEG Headset offers professional-grade brain data with its 14-channel system, 9-hour battery life, and innovative saline-based electrodes that allow easy rehydration and prevent interruptions. Its rotating headband, user-friendly design, and support for 128 and 256 Hz sampling rates make it an essential tool for researchers and citizen scientists alike.

14 Channel EEG: whole brain sensing
Fast Set Up: only 3-5 minutes
Refillable, saline-based electrodes: no interruptions
Wirelessly Connects: PC and mobile devices
Superior Connectivity: Bluetooth 5.0
Rechargeable: Up to 12 hours of battery life
Rotating head band: top and back positions offer flexibility and added comfort
9 Axis Motion Sensors: detect head movements
High-quality recording: Active Common-Mode Noise Rejection System

Try the New EPOC X

Full Specification

EEG sensors

14 channels: AF3, F7, F3, FC5, T7, P7, O1, O2, P8, T8, FC6, F4, F8, AF4

2 references: CMS/DRL references at P3/P4; left/right mastoid process alternative

Sensor material: Saline soaked felt pads

Connectivity

Wireless: Bluetooth Low Energy

Proprietary USB receiver: 2.4GHz band

USB: to change headset settings

Weight

170g

Dimensions

9 x 15 x 15 cm

EEG signals

Sampling method: Sequential sampling, single ADC

Sampling rate: 2048 internal downsampled to 128 SPS or 256 SPS (user configured)

Resolution: 14 bits with 1 LSB = 0.51μV (16 bit ADC, 2 bits instrumental noise floor discarded), or 16 bits (user configured)

Bandwidth: 0.16 – 43Hz, digital notch filters at 50Hz and 60Hz

Filtering: Built in digital 5th order Sinc filter

Dynamic range (input referred): 8400 μV(pp)

Coupling mode: AC coupled

Motion sensors

IMU part: ICM-20948

Quaternions: normalized, 4D

Accelerometer: 3-axis +/-4g

Magnetometer: 3-axis +/-4900uT

Sampling rate: 0 / 32 / 64 Hz (user configured)

Resolution: 16 bits

Supported platforms

Windows: 10 (64-bit) v1607+; 8GB RAM; 500MB available disk space

MAC: OSX 10.12 or above; 8GB RAM; 500MB available disk space

iOS: 9 or above; iPhone 5+, iPod Touch 6, iPad 3+, iPad mini

Android: 4.43+ (excluding 5.0); device with Bluetooth Low Energy

Power

Battery: Internal Lithium Polymer battery 640mAh

Battery life: up to 12 hours using USB receiver, up to 6 hours using Bluetooth Low Energy

Available detections**

Mental commands: neutral + up to 4 pretrained items per training profile

Performance metrics: Excitement, Engagement, Relaxation, Interest, Stress, Focus

Facial Expressions: Blink, Wink L/R, Surprise, Frown, Smile, Clench, Laugh, Smirk L/R

** access subject to license. Raw EEG also available

User Manual Quick Start Guide

***Disclaimer -EMOTIV products are intended to be used for research applications and personal use only. Our products are not sold as Medical Devices as defined in EU directive 93/42/EEC. Our products are not designed or intended to be used for diagnosis or treatment of disease.

Full Support

Raw EEG, Mental Commands, Performance Metrics and Facial Expressions detections are available.

Learn More

Professional grade signals

The EEG signal quality recorded by EPOC+ is statistically equivalent to traditional research grade devices costing in the tens of thousands of dollars.

Mobile Recording

EPOC+ transmits wireless data at 128 or 256 Hz, so you can record high resolution brain data outside of the laboratory and without being tethered to a computer.
